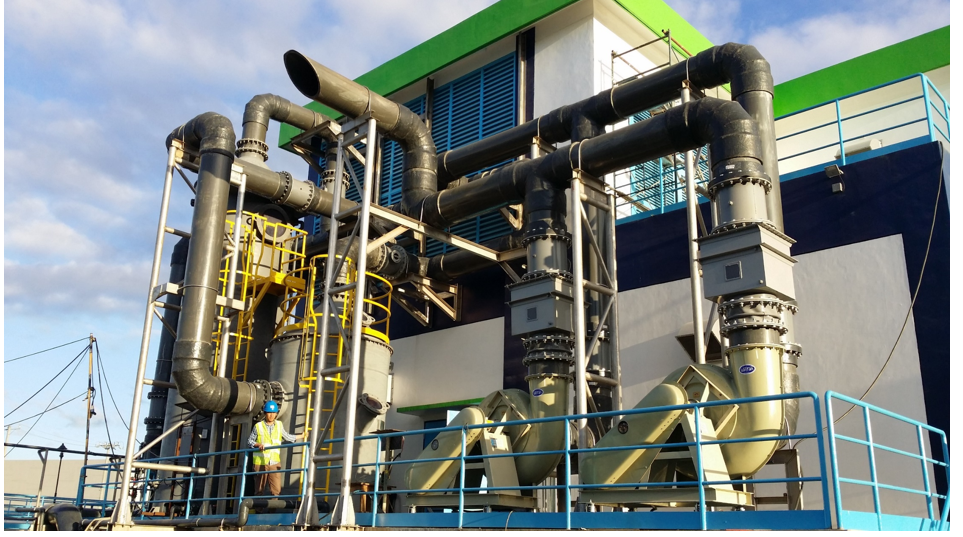

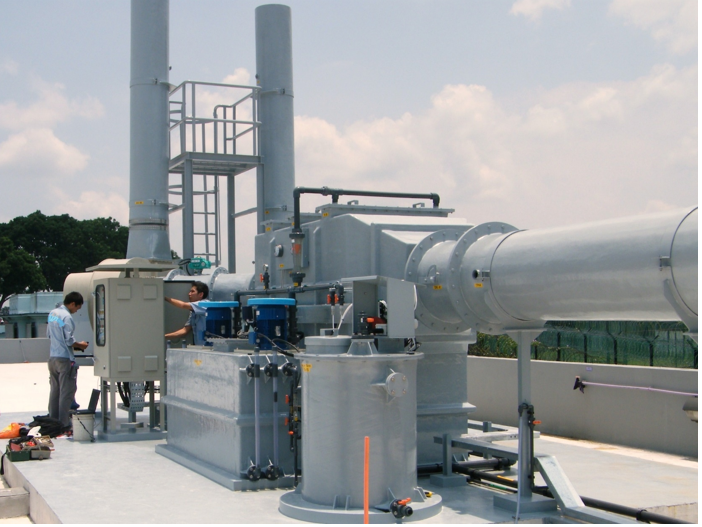

PIXXEL’s Process Exhaust and Scrubber

No	Client Name	System Capacity
1	Micron Pioneer Mini SANAND ,Gujarat	ACID & Solvent Scrubber
2	Silicon Box (Semiconductor-Back end)	Acid & Solvent Scrubber (2800) CMH
3	Stats Chipac (Semiconductor-Back end)	Acid Scrubber (1700) CMH
4	Soitec (Semiconductor-Back end)	Acid & Solvent Scrubber (4000) CMH
5	Sky Works (Semiconductor-Back end)	Acid & Solvent Scrubber (3000) CMH
6	Sembcorp for Exxon 2019	Benzene gas 2 x 2500 CMH
7	GE Aviation	HF gas 10 x 650 CMH
8	Paranaque Odour Control 2018	Biogas Scrubber
9	Insts Micro-electronics 2015	Acid/NH3 Scrubbers 1800 CMH each
10	IFF 2015	Bio-Trickling Scrubbers 12,000 CMH
11	800 Super 2019	Emission gas 2 x 2000 CMH
12	Insts Micro-electronics	Acid/NHs Scrubbers
13	SSMC 2023	Waste Gas Scrubber 3000 CMH

From Local Needs to Global Challenges Pixxel Has You Covered

PIXXEL Group is well known in industrial pollution control, thermal treatment, energy recovery systems, and corrosion-resistant blowers. We go beyond compliance to deliver innovative solutions that improve efficiency and maximize return on investment.

No matter the size or complexity of your environmental or process challenges, PIXXEL has the experience and technologies to help you succeed.

With over 7 years of global experience, we understand local and industry- specific regulations. Whether you're designing a new facility or upgrading an existing one, you can rely on Verantis for proven, cost-effective, and long- lasting solutions.

In-house design & fabrication leading to better quality control, lead time and lower costs all of which are passed to our customers.

Responsive team for enquiries and technical support. Full factory test including hydrostatic and barcol hardness before delivery.

Chemical resistant uPVC and CPVC Schedule 80 piping’s and valves.

Manual and automated dosing & instrumentation controls for process optimization.

Whole package available including design, fabricate, supply, install, test & commission

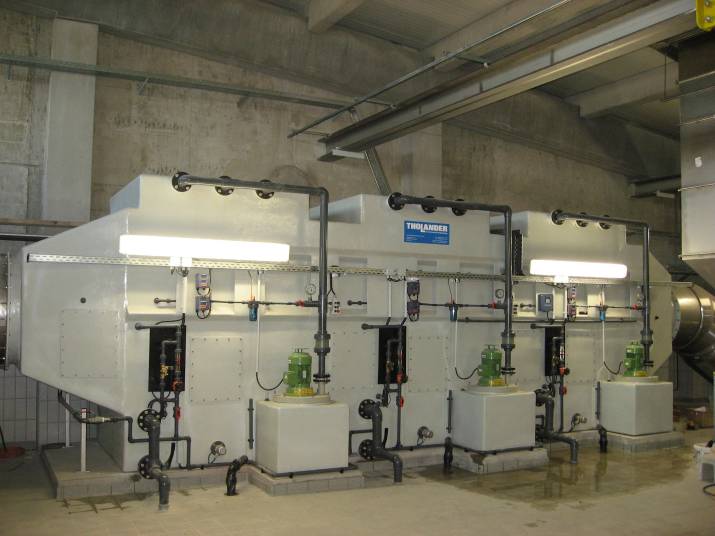

HorizontalCross-flow Type Type Scrubbe

Our series of horizontal scrubbers is ideal when height restriction is an issue. The cross-flow configuration ensures the scrubber height is kept to a minimum yet achieving the scrubbing efficiency needed. Please check with us for applications with smaller flowrates. Other configurations are available for

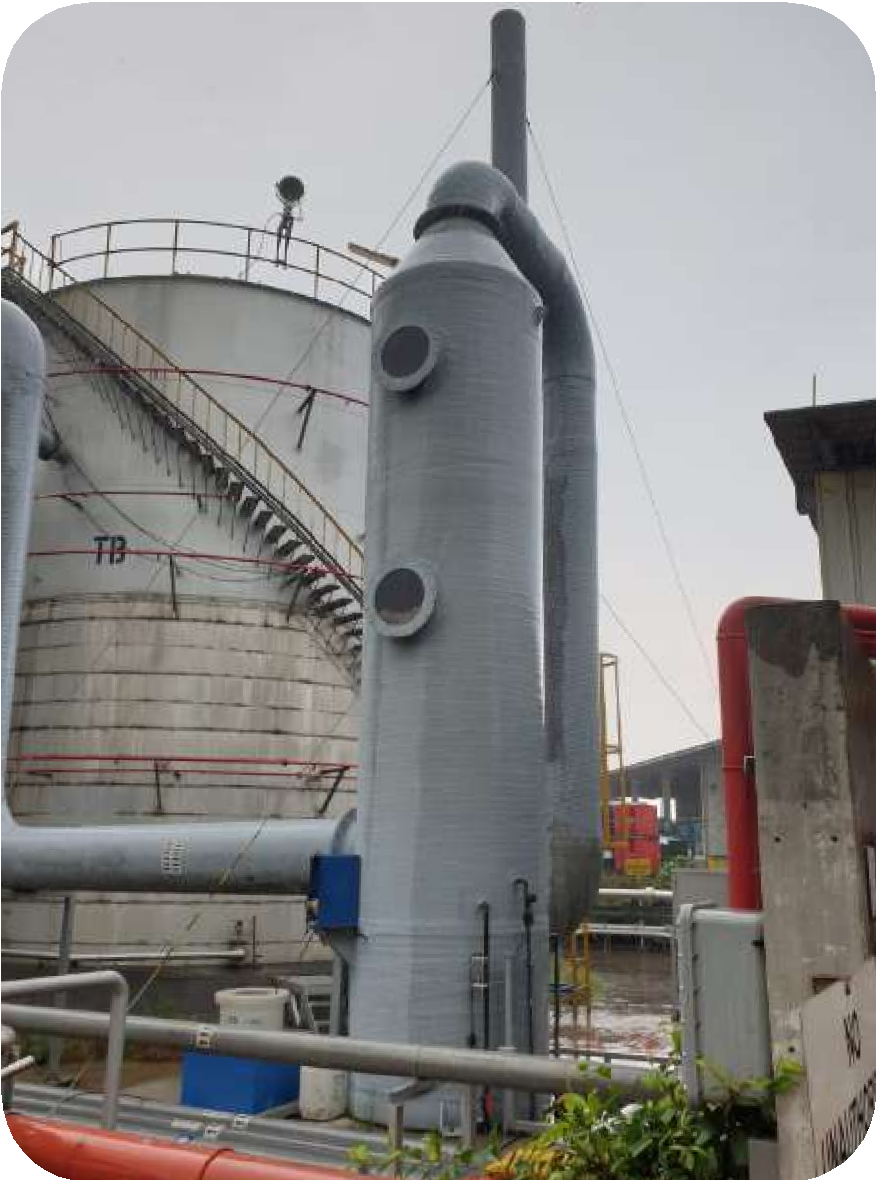

VerticalCounter-current Fume Scrubbers

This series of random packed-bed towers maximum scrubbing efficiencies due counter-current flow pattern

Please check with us for applications smaller flowrates. Other configurations available for smaller flowrates

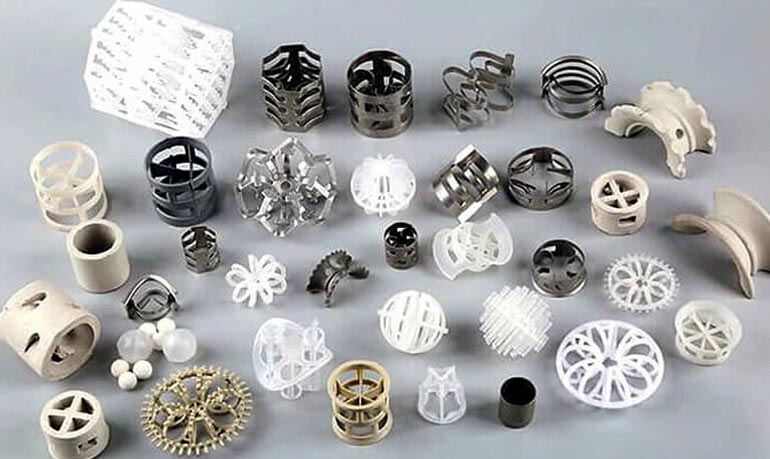

TOWER PACKING

Tellerette tower packings have a unique patented toroidal helix design that makes them dramatically more efficient than conventional packing in a wide range of mass transfer and particulate collection applications.

Tellerette tower packing is available in a wide range of materials including Polypropylene, Polyethylene, Glass Filled Polypropylene, PVC, CPVC, PVDF and Xydar

Physical Properties Of Range Of Tellerettes

S.No	Nominal Packing Size	Maxium Dimension OD	Loop Height	Free Volume %	Surface Area M2/M3	Average Packing Factor
1	#1R	46mm	19mm	87	180	36
2	#2R	70mm	25mm	93	125	18
3	#2K	83mm	32mm	95	92	11
4	#3R	95mm	38mm	92	98	16
5	#3K	106mm	56mm	96	72	9

MIST ELIMINATORS

Mist eliminators remove liquid entrainment from gas streams, thus providing high efficiency and low pressure drops in scrubbers, cooling towers, air washers, gas absorbers and ventilation systems.

The Chevron type offers high performance with mist removal efficiencies often approaching 100%. They also provide excellent resistance against plugging in applications with high solids loading.

Available materials of construction include FRP, stainless steel and Noryl.

TOWER INTERNALS

PIXXEL offers a complete line of packing support plates and spray nozzles to complement our line of Tellerette packing

Service's

TO WHO WE SERVE

Semiconductor

Manufacturing

Solar Technology

Pharmaceutical

Clean Room

Chemical Industry

Food Industry

Electroplating

Wastewater Treatment Plants

Institutions & Research Labs

WHAT WE SERVE

Hydrobromic Acid

Hydrochloric Acid

Hydrofluoric Acid

Nitric Acid

Sulphuric Acid

Acetic Acid

Chromic Acid

Perchloric Acid

Phosphoric Acid

Sodium Hydroxide

Potassium Hydroxide

Sulphur Oxides (SOx)

Nitrogen Oxides (NOx)

Bromine

Chlorine

Fluorine

Ammonia

Ethylene Oxide

Hydrogen Cyanide

Product Detail's

Footprint for Circular Tower Type Scrubbing.

Model	Air Flowrate (CMH)	A	B	C	Approx Operating Wt (kg)
ABSCR-V4	250	955	300	3,600	470
ABSCR-V8	500	955	300	3,640	470
ABSCR-V25	1,500	1,170	515	3,840	745
ABSCR-V33	2,000	1,250	595	3,920	875
ABSCR-V42	2,500	1,320	665	3,980	995
ABSCR-V50	3,000	1,380	730	4,040	1,120
ABSCR-V58	3,500	1,440	790	4,100	1,240
ABSCR-V67	4,000	1,490	840	4,150	1,345
ABSCR-V75	4,500	1,545	895	4,200	1,480
ABSCR-V83	5,000	1,590	940	4,240	1,585
ABSCR-V100	6,000	1,680	1,030	4,325	1,800
ABSCR-V117	7,000	1,765	1,115	4,410	2,020
ABSCR-V133	8,000	1,840	1,190	4,475	2,220
ABSCR-V150	9,000	1,910	1,260	4,545	2,420
ABSCR-V167	10,000	1,980	1,330	4,610	2,765
ABSCR-V250	15,000	2,280	1,630	4,895	3,820
ABSCR-V333	20,000	2,530	1,880	5,130	4,830
ABSCR-V417	25,000	2,750	2,100	5,340	5,840
ABSCR-V500	30,000	2,955	2,305	5,530	7,120
ABSCR-V583	35,000	3,140	2,490	5,710	8,140
ABSCR-V667	40,000	3,310	2,660	5,870	9,100
ABSCR-V750	45,000	3,470	2,820	6,020	10,100
ABSCR-V833	50,000	3,625	2,975	6,170	11,120
BSCR-V1000	60,000	3,910	3,260	6,435	13,040
ABSCR-V1167	70,000	4,400	3,520	6,985	20,390
BSCR-V1333	80,000	4,640	3,760	7,210	22,920
BSCR-V1500	90,000	4,870	3,990	7,430	26,185
BSCR-V1667	100,000	5,035	4,205	7,535	26,500
BSCR-V1833	110,000	5,290	4,410	7,825	31,525
BSCR-V2000	120,000	5,485	4,605	8,010	34,020
BSCR-V2167	130,000	5,675	4,795	8,190	36,550
BSCR-V2333	140,000	5,855	4,975	8,365	39,000
BSCR-V2500	150,000	6,030	5,150	8,530	41,485

Footprint for Horizontal Flow Type Scrubbing

Model	Air Flowrate (CMH)	A	B	C	Approx Operating Wt (kg)
ABSCR-H4	250	950	2,410	1,265	1,400
ABSCR-H8	500	950	2,410	1,265	1,400
ABSCR-H16	1,000	1,020	2,500	1,375	1,460
ABSCR-H25	1,500	1,105	2,560	1,455	1,500
ABSCR-H33	2,000	1,175	2,620	1,525	1,550
ABSCR-H42	2,500	1,240	2,670	1,590	1,600
ABSCR-H50	3,000	1,295	2,720	1,645	1,645
ABSCR-H58	3,500	1,345	2,760	1,695	1,685
ABSCR-H67	4,000	1,395	2,800	1,745	1,725
ABSCR-H75	4,500	1,440	2,830	1,790	1,770
ABSCR-H83	5,000	1,485	2,870	1,835	1,810
ABSCR-H100	6,000	1,565	2,930	1,915	1,895
ABSCR-H117	7,000	1,635	2,990	1,985	1,980
ABSCR-H133	8,000	1,705	3,040	2,055	2,055
ABSCR-H150	9,000	1,770	3,090	2,120	2,125
ABSCR-H167	10,000	1,830	3,140	2,180	2,385
ABSCR-H250	15,000	2,095	3,350	2,445	2,810
ABSCR-H333	20,000	2,315	3,530	2,665	3,170
ABSCR-H417	25,000	2,515	3,690	2,865	3,565
ABSCR-H500	30,000	2,690	3,830	3,040	4,250
ABSCR-H583	35,000	2,855	3,960	3,205	5,005
ABSCR-H667	40,000	3,005	4,090	3,355	5,400
ABSCR-H750	45,000	3,150	4,200	3,500	5,795
ABSCR-H833	50,000	3,285	4,310	3,635	6,180
ABSCR-H1000	60,000	3,535	4,509	3,885	7,070
ABSCR-H1167	70,000	3,770	4,690	4,120	7,835
ABSCR-H1333	80,000	3,985	4,870	4,335	8,580
ABSCR-H1500	90,000	4,185	5,030	4,535	9,310
ABSCR-H1667	100,000	4,375	5,180	4,725	10,190
ABSCR-H1833	110,000	4,560	5,330	4,910	10,935
ABSCR-H2000	120,000	4,730	5,470	5,080	11,645
ABSCR-H2167	130,000	4,900	5,600	5,250	12,425
ABSCR-H2333	140,000	5,060	5,730	5,410	13,140
ABSCR-H2500	150,000	5,215	5,850	5,565	13,845

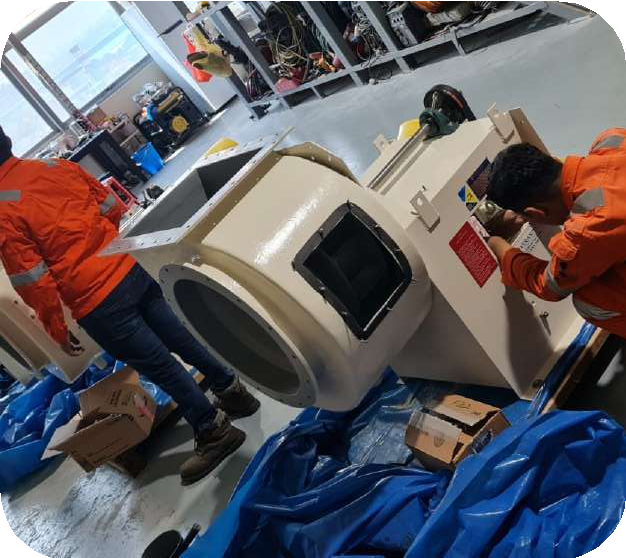

FAN ACCESSORIES

Customer selected resin and/or veil system

Titanium, Hastelloy and other alloy shafts and impellers

Custom reverse transition

Access door

Shaft seals, stuffing box, Teflon, mechanical or special

Spark resistant coating

Inlet boxes

Acoustical treatments: housing insulation, silencers and enclosures

Dampers/inlet vane controls

Back vanes on impellers

Inlet/outlet bird screen

Variable frequency drive

Removable bearing assembly (axial fans)

No-loss stack

Inertia bases

Misting system

Vibration monitoring equipment

Anti-spin brake systems

Powder coating, galvanizing, epoxy coats

Hybrid fans

Other custom accessories to meet your needs
